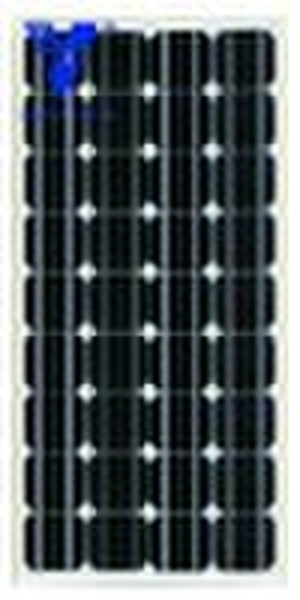

Mono-crystalline solar panel(with TUV CE ISO certi
Kelvin Chen
Contact person
Basic Information
| Place of Origin | Jiangsu China (Mainland) |
|---|---|
| Brand Name | YB |
| Model Number | YB-M636140/YB-M636135/YB-M636130/... |
| Size | 156X156mm |
| Number of Cells | 36 |
| Max. Power | 140W |
| Material | Monocrystalline Silicon |
ModuleFeatures •2-BusbarConfiguration Yabang'smono-andpoly-crystallinemodulesfeature2-busbarcells.Thisconfigurationhastheadvantageofmaximizingthecell'slight-absorbingsurfacearea. •Weather-ResistantFrame Yabang'sframesareconstructedofaluminumalloyforenduranceinruggedweatherconditions.Inaddition,ourframesaregivenadoubleoxidationcoatingforadditionalprotectionagainsttheelements. •DurableGlassSurface Ourglasssurfacehasbeenproventowithstandfallingsteelmarblesthatweighover1kg(2.2lbs).Itcanalsosupportover300kg(660lbs)ofloadpersquaremeter. •DesigningServices Weoffersystemdesigningtothepotentialcustomers. SPECIFICATIONS ModuleType YB-M636140 YB-M636135 YB-M636130 YB-M636125 YB-M636120 140W 135W 130W 125W 120W MaximumPower Pm(W) 144.9 139.9 134.9 129.9 124.9 Tolerance (%) ±1.5 ±1.5 ±1.5 ±1.5 ±1.5 OpenCircuitVoltage Voc(V) 22.43 22.32 22.10 21.82 21.60 ShortCircuitCurrent Isc(A) 8.21 8.14 8.05 7.98 7.92 MaximumPowerVoltage Vm(V) 18.43 18.14 17.82 17.50 17.35 MaximumPowerCurrent Im(A) 7.60 7.44 7.30 7.14 6.92 ModuleEfficiency (%) 14.29 13.78 13.27 12.76 12.25 SolarCellEfficiency (%) 16.38 15.88 15.13 14.75 14.25 CellType (mm) 156×156(Mono-CrystallineSilicon) NumberofCells (Pcs) 36 MaximumSystemVoltage (V) DC1000 Temp.Coeff.ofVoc (%/°C) -0.31 Temp.Coeff.ofIsc (%/°C) 0.03 Temp.Coeff.ofPm (%/°C) -0.37 OperatingTemperature (°C) -40to85 NominalOperatingCell Temperature(NOCT) (°C) 45±2 Max.SeriesFuse (A) 15 Insulation (MΩ) 50 WindBearing (Pa) ≤5400 PressureBearing (Pa) ≤2400 PHYSICALCHARACTERISTICSunit:mm Dimensions (mm) 1481×666×48 Weight (kg) 12.8 PackingConfiguration 2pcs/carton Quantity/Pallet 36pcs/pallet LoadingCapacity 360pcs/20ftcontainer 756pcs/40ftcontainer PackingConfiguration 2pcs/carton Quantity/Pallet 36pcs/pallet LoadingCapacity 360pcs/20ftcontainer 756pcs/40ftcontainer ELECTRICALCHARACTERISTICS
Delivery terms and packaging
Packaging Detail: 1.Packing Configuration:2pcs/carton;2.Quantity/Pallet:36pcs/pallet;3.Loading Capacity:360pcs/20ft container,756pcs/40ft container Delivery Detail: within15days
Port: ShangHaiPort
