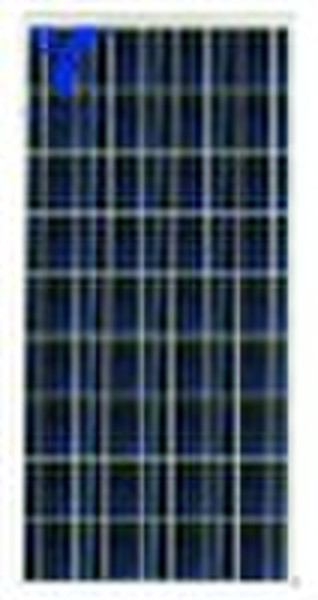

Polycrystalline Silicon Solar Panel(long life With

Solar PanelFeatures •2-BusbarConfiguration Yabang'smono-andpoly-crystallinemodulesfeature2-busbarcells.Thisconfigurationhastheadvantageofmaximizingthecell'slight-absorbingsurfacearea. •Weather-ResistantFrame Yabang'sframesareconstructedofaluminumalloyforenduranceinruggedweatherconditions.Inaddition,ourframesaregivenadoubleoxidationcoatingforadditionalprotectionagainsttheelements. •DurableGlassSurface Ourglasssurfacehasbeenproventowithstandfallingsteelmarblesthatweighover1kg(2.2lbs).Itcanalsosupportover300kg(660lbs)ofloadpersquaremeter. •DesigningServices Weoffersystemdesigningtothepotentialcustomers. SPECIFICATIONS ModuleType YB-140P6 YB-135P6 YB-130P6 YB-125P6 YB-120P6 140W 135W 130W 125W 120W MaximumPower Pm(W) 144.9 139.9 134.9 129.9 124.9 Tolerance (%) ±1.5 ±1.5 ±1.5 ±1.5 ±1.5 OpenCircuitVoltage Voc(V) 22.03 21.85 21.60 21.56 21.53 ShortCircuitCurrent Isc(A) 8.23 8.10 7.83 7.60 7.35 MaximumPowerVoltage Vm(V) 18.36 18.22 17.96 17.78 17.57 MaximumPowerCurrent Im(A) 7.63 7.41 7.24 7.03 6.83 ModuleEfficiency (%) 14.29 13.78 13.27 12.76 12.25 SolarCellEfficiency (%) 16.12 15.62 14.87 14.37 13.75 CellType (mm) 156×156(Mono-CrystallineSilicon) NumberofCells (Pcs) 36 MaximumSystemVoltage (V) DC1000 Temp.Coeff.ofVoc (%/°C) -0.32 Temp.Coeff.ofIsc (%/°C) 0.04 Temp.Coeff.ofPm (%/°C) -0.35 OperatingTemperature (°C) -40to85 NominalOperatingCell Temperature(NOCT) (°C) 45±2 Max.SeriesFuse (A) 15 Insulation (MΩ) 50 WindBearing (Pa) ≤5400 PressureBearing (Pa) ≤2400 PHYSICALCHARACTERISTICSunit:mm Dimensions (mm) 1481×666×48 Weight (kg) 12.8 PackingConfiguration 2pcs/carton Quantity/Pallet 36pcs/pallet LoadingCapacity 360pcs/20ftcontainer 756pcs/40ftcontainer ELECTRICALCHARACTERISTICS with TUV CE Certificate
